Overview

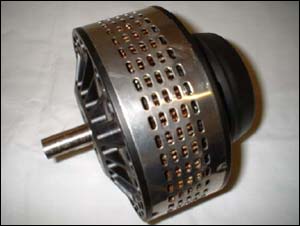

The LMC 170 is an Axial Gap D.C brush motor suitable for traction and industrial applications including, compressors, sweepers, mopeds, golf carts and pumps. The LMC 170 is available in 126 and 127 strip armatures with either single or double magnets.

Features

• High Efficiency (up to 90%)
• Light Weight (8.5 kilo’s)
• Simple Electronic control
• Long Brush Life
• Interchangeable Shaft
• Rugged Construction
• CE Marked
• IP20 Rating
• Available from 12 to 48V
• Speed proportional to voltage

Dimensions (mm)

Requires Adobe Reader - download [ here ] link opens in a new window

Electrical Properties

• An Inductance in the order of 31.7µH.
• An Armature Resistance of 50m?.

Note! Due to the low inductance of the motor some controllers may require a series choke if a high starting torque is required. For further details and any other technical enquiries please contact L.M.C or your authorised distributor

These are a few examples of the performance of this motor

Each link opens an Excel Spreadsheet in a new window
